24 Port FC UPC Connector Polishing Fixture with High Stability and Good Surface Quality for Easy Jig Changes

1
MOQ
$210.23-230.51
giá bán
24 Port FC UPC Connector Polishing Fixture with High Stability and Good Surface Quality for Easy Jig Changes
Đặc trưng Bộ sưu tập Mô tả sản phẩm Yêu cầu báo giá
Đặc trưng
Thông số kỹ thuật
Kiểu: Máy đánh bóng sợi quang
Vật liệu: Thép không gỉ
Loại kết nối: Đầu nối FC UPC
Kích cỡ: 174*174*26mm
Đường kính ferrule: 2,50mm
Trọng lượng ròng: 1.2KGS
Tổng trọng lượng: 2.0 KGS
Số sợi: 24 vị trí
Mất chèn: ≤0,20dB
Trở lại tổn thất: ≥60dB (APC)
Mặt cuối: PC
Dung tích: 24 vị trí
Bán kính cong: 5-25mm
Độ lệch đỉnh: 0-50μm
Chiều cao sợi: -100~+50μm
Làm nổi bật:

High Stability Polishing Fixture

,

Good Surface Quality Fiber Optic Polishing Jig

,

Easy to Change Jigs Fiber Polishing Holder
Thông tin cơ bản
Nguồn gốc: Quảng Đông, Trung Quốc
Hàng hiệu: Chuanglixun
Chứng nhận: ce
Số mô hình: FC-UPC-24, FC/UPC-24, FC/UPC
Thanh toán
Mô tả sản phẩm

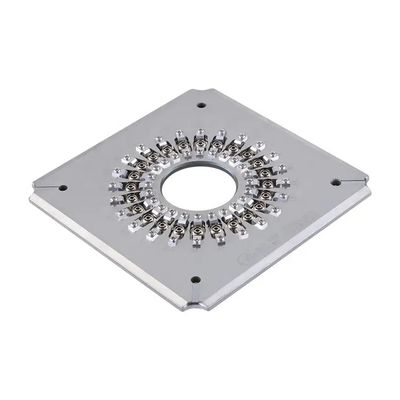

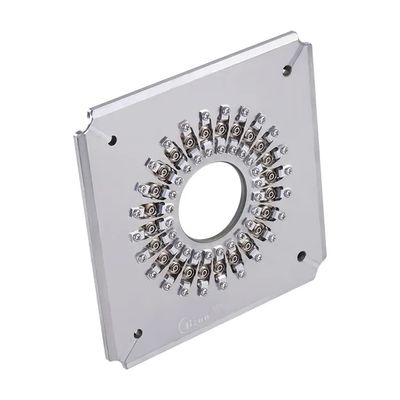

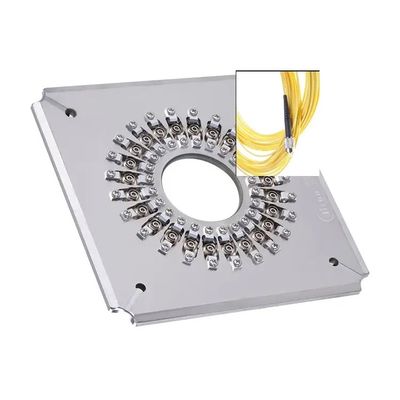

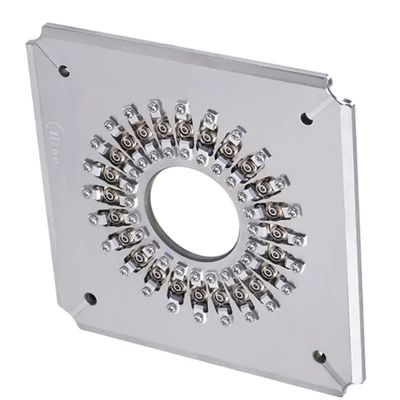

Fiber Optic Polishing Plate Holder Fixture 24 Port FC UPC Fiber Optic Connector Polishing Fixture
This high-stability fiber polishing fixture delivers excellent surface quality for FC/PC connectors. Constructed from heat-treated hardened steel (S2316) for extended service life, it supports various connector types including SC, FC, ST, and LC configurations.
Key Features
  • Designed specifically for FC/PC connectors
  • Simple jig changing mechanism for flexible operation
  • High efficiency - polishes 24, 32, or 36 connectors per cycle
  • 98-100% first pass yield for end face quality
  • IPC structure with independent compression for each connector
  • PC return loss ≥55dB, insertion loss ≤0.20dB (typical)
  • Replaceable accessories extend service life
Specifications
Model FC-PC-24 FC-PC-32 FC-PC-36
Brand CLX CLX CLX
Connector Type FC PC FC PC FC PC
End-face PC PC PC
Ferrule Diameter 2.5mm 2.5mm 2.5mm
Capacity 24 positions 32 positions 36 positions
Insertion Loss ≤0.20dB ≤0.20dB ≤0.20dB
Return Loss ≥55dB (PC) ≥55dB (PC) ≥55dB (PC)
Application Polishing assembled FC PC connectors
Material Stainless Steel
Dimension (L*W*H) 174*174*26 mm
Net Weight / Gross Weight 1.5 kgs / 2.0 kgs
24 Port FC UPC Connector Polishing Fixture with High Stability and Good Surface Quality for Easy Jig Changes 0 24 Port FC UPC Connector Polishing Fixture with High Stability and Good Surface Quality for Easy Jig Changes 1 24 Port FC UPC Connector Polishing Fixture with High Stability and Good Surface Quality for Easy Jig Changes 2
Polishing Effect
Polished Connector Ferrule Faces
24 Port FC UPC Connector Polishing Fixture with High Stability and Good Surface Quality for Easy Jig Changes 3
High-quality end-face polishing with no white spots or scratches. Fiber edge is clearly visible for optimal performance.
ILRL Test Result
24 Port FC UPC Connector Polishing Fixture with High Stability and Good Surface Quality for Easy Jig Changes 4
Connector Type SM/UPC SM/APC MM/UPC
Insertion Loss ≤0.20dB ≤0.20dB ≤0.50dB
Return loss ≥55dB ≥60dB ≥30dB
Geometry Test Result
24 Port FC UPC Connector Polishing Fixture with High Stability and Good Surface Quality for Easy Jig Changes 5
NO. Parameters UPC Criterion APC Criterion
1. Radius of Curvature 5-25mm 5-12mm
2. Apex Offset 0-50μm 0-50μm
3. Fiber Height -100~+50μm -100~+50μm
4. Angle n/a 8.00+/-0.50°
