36 Positions SC APC Connector Fiber Optic Polishing Jig with Hardened Stainless Steel S2316 and APC Return Loss ≥60dB

1
MOQ
$336.25-365.16
giá bán
36 Positions SC APC Connector Fiber Optic Polishing Jig with Hardened Stainless Steel S2316 and APC Return Loss ≥60dB
Đặc trưng Bộ sưu tập Mô tả sản phẩm Yêu cầu báo giá
Đặc trưng
Thông số kỹ thuật
Vật liệu: Thép không gỉ cứng2316
Loại kết nối: Đầu nối SC APC
Kích cỡ: 174*174*26mm
Đường kính ferrule: 2,50mm
Trọng lượng ròng: 1,5 kg
Tổng trọng lượng: 2.0 KGS
Số sợi: 36 vị trí
Mất chèn: ≤0,20dB
Trở lại tổn thất: ≥60dB (APC)
Mặt cuối: APC
Dung tích: 36 vị trí
Bán kính cong: 5-12mm
Độ lệch đỉnh: 0-50μm
Chiều cao sợi: -100~+50μm
Góc: 8,00+/- 0,50°
Làm nổi bật:

36 Positions Fiber Optic Polishing Jig

,

Hardened Stainless Steel S2316 Polishing Fixture

,

APC Return Loss ≥60dB Fiber Polishing Fixture
Thông tin cơ bản
Nguồn gốc: Quảng Đông, Trung Quốc
Hàng hiệu: Chuanglixun
Chứng nhận: ce
Số mô hình: SC-APC-36
Thanh toán
Mô tả sản phẩm
High Quality SC APC Fiber Optic Connector Polishing Jig 36 With Green
36 Positions SC APC Connector Fiber Optic Polishing Jig with Hardened Stainless Steel S2316 and APC Return Loss ≥60dB 0
Product Description

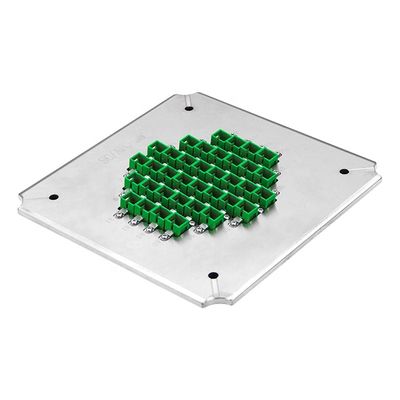

This fiber polishing fixture/jig offers high stability and excellent surface quality. Manufactured from high-quality heat-treated steel (hardened steel S2316) for extended service life. The jig can be designed for SC, FC, ST, LC connectors and customized according to customer requirements.
Key Features
  • Designed specifically for SC/APC connectors
  • Easy jig changing with simple, flexible operation
  • High efficiency - polishes up to 36 connectors per cycle with 98%-100% first pass yield

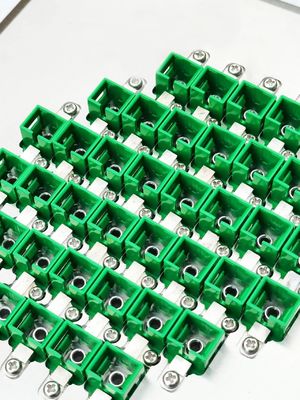

  • IPC structure with independent compression for each connector
  • APC return loss ≥60dB, insertion loss ≤0.20dB (typical)
  • Replaceable accessories for extended service life
Specifications

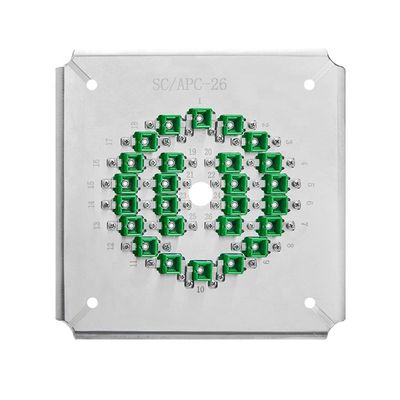

Model SC-UPC-24 SC-APC-26 SC-APC-36
Brand CLX CLX CLX
Connector Type SC UPC SC APC SC APC
End-face UPC APC APC
Ferrule Diameter 2.5mm 2.5mm 2.5mm
Capacity 24 positions 26 positions 36 positions
Insertion Loss ≤0.20dB ≤0.20dB ≤0.20dB
Return Loss ≥50dB (UPC) ≥60dB (APC) ≥60dB (APC)
Application Polishing assembled SC UPC connectors Polishing assembled SC APC connectors Polishing assembled SC APC connectors
Material Stainless Steel S136
Dimension (L*W*H) 174*174*26 mm
Net Weight / Gross Weight (kg) 1.5 kgs / 2.0 kgs
Suitable machines CLX-02E polishing machine, Seikoh Giken SFP-550 polishing machine, and similar machines
36 Positions SC APC Connector Fiber Optic Polishing Jig with Hardened Stainless Steel S2316 and APC Return Loss ≥60dB 1 36 Positions SC APC Connector Fiber Optic Polishing Jig with Hardened Stainless Steel S2316 and APC Return Loss ≥60dB 2
Polishing Effect

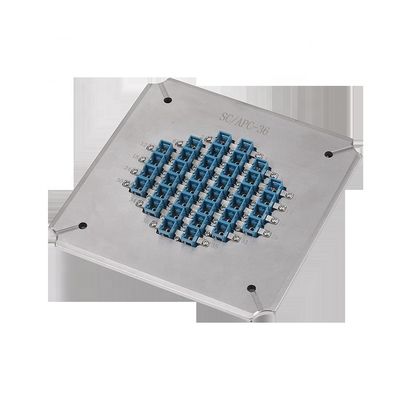

1. Polished Connector Ferrule Faces
36 Positions SC APC Connector Fiber Optic Polishing Jig with Hardened Stainless Steel S2316 and APC Return Loss ≥60dB 3
High-quality end-face polishing with no white spots or scratches. The fiber edge is clearly visible.
2. ILRL Test Result

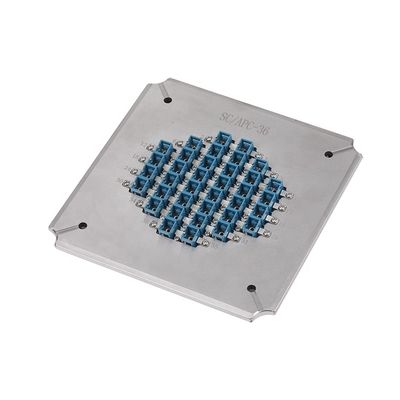

36 Positions SC APC Connector Fiber Optic Polishing Jig with Hardened Stainless Steel S2316 and APC Return Loss ≥60dB 4
Connector Type SM/UPC SM/APC MM/UPC
Insertion Loss ≤0.20dB ≤0.20dB ≤0.50dB
Return loss ≥55dB ≥60dB ≥30dB
3. Geometry Test Result

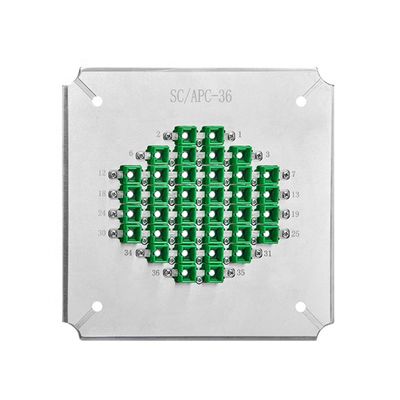

36 Positions SC APC Connector Fiber Optic Polishing Jig with Hardened Stainless Steel S2316 and APC Return Loss ≥60dB 5
NO. Parameters UPC Criterion APC Criterion
1. Radius of Curvature 5-25mm 5-12mm
2. Apex Offset 0-50μm 0-50μm
3. Fiber Height -100~+50μm -100~+50μm
4. Angle n/a 8.00+/-0.50°
