High-Precision Fiber Optic Polishing Machine with Adjustable Speed 140RPM for 48 MU/LC and 36 SC/FC/ST Connectors

1
MOQ
$729.65-765.25
giá bán
High-Precision Fiber Optic Polishing Machine with Adjustable Speed 140RPM for 48 MU/LC and 36 SC/FC/ST Connectors
Đặc trưng Bộ sưu tập Mô tả sản phẩm Yêu cầu báo giá
Đặc trưng
Thông số kỹ thuật
Điện áp: 110~230VAC 50Hz/60Hz
Quyền lực: 126w
Cân nặng: 27kg
Kích thước: Dài 240mm x Rộng 240mm x Cao 260mm
Loại kết nối: SC/FC/ST/LC/E2000/SMA905/MU
Nhiệt độ làm việc: 8°C-45°C
Tấm quay OD: 127 mm (5 inch)
Cài đặt thời gian: 99 phút 99 giây (Tối đa)
Tốc độ xoay: 140 vòng / phút
Tấm tăng vọt: < 10 um
Cấu hình áp suất: 21 ~ 36 N/cm2
Độ ồn: <50dB
Trạng thái làm việc Rung: 0,25g 5 ~ 100Hz 10 phút
Dừng trạng thái rung: 0,50g 5 ~ 100Hz 10 phút
Độ ẩm tương đối: 15%~85%
Làm nổi bật:

Adjustable speed 140RPM Fiber Optic Polishing Machine

,

48 pcs MU/LC capacity Patch Cord Polishing Machine

,

36 pcs SC/FC/ST capacity Fiber Connector Polisher
Thông tin cơ bản
Nguồn gốc: Quảng Đông, Trung Quốc
Hàng hiệu: chuanglixun
Chứng nhận: RoHS
Số mô hình: CLX-02E, CLX-02E
Thanh toán
Mô tả sản phẩm
China Factory Price Fiber Optic Polishing Machine Patch Cord Production Machine CLX-02E

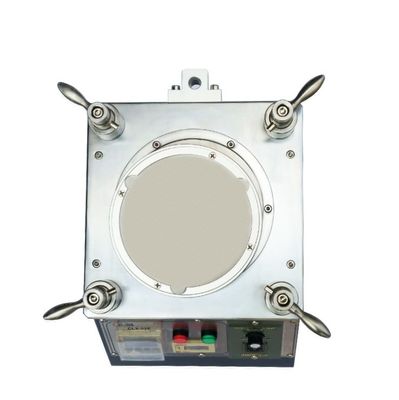

High-Precision Fiber Optic Polishing Machine with Adjustable Speed 140RPM for 48 MU/LC and 36 SC/FC/ST Connectors 0
Product Overview
Our Fiber Optical Polishing Machine is designed based on international universal standards and extensive hands-on experience. It exceeds GR-326 end face geometry requirements and features four-corner compression with new I.P.C. holder technology for industry-leading results. The machine maintains consistent performance whether polishing 1 or 24 connectors, with stable jig installation and compact size. Designed for volume production, it delivers high productivity while saving material and reducing polishing costs.
Key Features
  • High-precision fiber optic polishing equipment
  • Quick-change polishing jigs for efficient operation
  • Planet orbit polishing trails with adjustable rotation speed (typically 140RPM)
  • High capacity: 48 pcs for MU/LC connectors, 36 pcs for SC/FC/ST connectors
  • 98%-100% first pass yield for end face quality
  • IPC structure fixture with independent compression for each connector
  • 3D pass rate ≥98% (typically 100% per IEC standards)
  • APC return loss ≥60dB, PC(UPC) return loss ≥55dB, insertion loss ≤0.20dB (typical)
  • Heat-treated stainless steel construction for precision and durability (8-10 year lifespan)

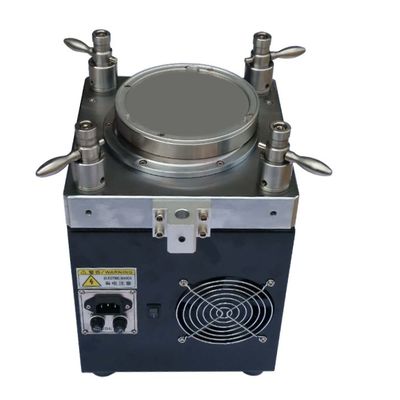

High-Precision Fiber Optic Polishing Machine with Adjustable Speed 140RPM for 48 MU/LC and 36 SC/FC/ST Connectors 1
Technical Specifications
Specification Value
Machine Type CLX-02E
Machine Size L 240mm × W 240mm × H 260mm
Net Weight 28kg
Power Input 110~230VAC 50Hz/60Hz
Electric Power 126w
Relative Humidity 15%~85%
Work Temperature 8℃~45℃
O.D. of Rotation Plate 127 mm (5 inch)
Time Settings 99 min 99 sec (Max)
Speed for Rotation Plate 140 rpm
Height of Plate Jumpiness < 10 μm
Pressure Configuration 21 ~ 36 N/cm²
Noise Level < 50 dB
Polishing Performance
Fiber End Face Inspection Results

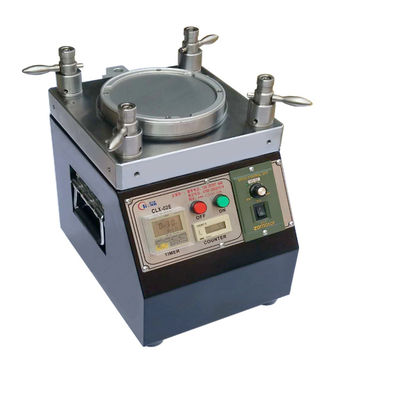

High-Precision Fiber Optic Polishing Machine with Adjustable Speed 140RPM for 48 MU/LC and 36 SC/FC/ST Connectors 2
High-quality end-face polishing with no white spots or scratches. Fiber edge is clearly visible with excellent surface finish.
ILRL Test Results
High-Precision Fiber Optic Polishing Machine with Adjustable Speed 140RPM for 48 MU/LC and 36 SC/FC/ST Connectors 3
Connector Type SM/UPC SM/APC MM/UPC
Insertion Loss ≤0.20dB ≤0.20dB ≤0.50dB
Return loss ≥55dB ≥55dB ≥30dB
Geometry Test Results
High-Precision Fiber Optic Polishing Machine with Adjustable Speed 140RPM for 48 MU/LC and 36 SC/FC/ST Connectors 4
Parameters UPC Criterion APC Criterion
Radius of Curvature 5-25mm 5-12mm
Apex Offset 0-50μm 0-50μm
Fiber Height -100~+50μm -100~+50μm
Angle n/a 8.00+/-0.50°
About the Manufacturer
Shenzhen Chuanglixun Optoelectronic Equipment Co., Ltd. was established in 2010 as an optical communications equipment company specializing in R&D, production, after-sales service and technical support. We provide high-quality products along with comprehensive technical solutions for fiber optic connector production challenges.
High-Precision Fiber Optic Polishing Machine with Adjustable Speed 140RPM for 48 MU/LC and 36 SC/FC/ST Connectors 5
Certifications
High-Precision Fiber Optic Polishing Machine with Adjustable Speed 140RPM for 48 MU/LC and 36 SC/FC/ST Connectors 6
Shipping Information
We ship worldwide using DHL, FEDEX, UPS, EMS, TNT or Sea freight. Customers may provide their courier account for optimized shipping costs.
Frequently Asked Questions
1. Are you a factory or a trader?
We are the factory.
2. What is your MOQ?
Minimum order quantity is 1 piece.
3. Do you provide sample services?
Yes, we provide samples.
4. How will you ship to me?
Standard shipping takes 4-6 days via DHL or FedEx. Larger quantities may require additional time.
5. How do we pay?
We accept advance booking or multiple payment methods including T/T and T/L.
6. What is your product warranty?
1-year warranty covering free repairs (excluding consumables). After warranty, we provide cost-price replacement parts.
7. Do you provide customized services?
Yes, we offer customization based on customer requirements.
